Info:
Weight: 26.3g
Length: 26cm
Aimed spinning style: All rounder (Tech linkage origented)
Creator: KaD
Source: Picture below
Parts needed
- x2 Factis BM2 (barrel)
- x2 X-POWER/tome (grips)
- x2 Giotto Turbo Maxi (barrel)
- Only one can be used
- x2 ZhiGao V24/V39 (grip)
- x1 Tsukineko Emboss Dual Pen (small cap)
- x2 Dong-A Com.ssa (Barrels)
- x2 M6 cap nut
Additional Items
- tape
Text tutorial
Preparation
- Cut 2x 3cm of Giotto barrel.
- Cut 2x 8.9cm from the Factis barrel.
- Cut 1cm from the Emboss small cap.
- Cut 1x 3cm and 2x 4cm from Comssa barrel (4cm pieces should be cut from the front and the 3cm one from the middle).
- Cut 2x 4mm of Tornado grip.
Assembly
- Wrap some tape around the 4cm comssa piece then put it inside the Giotto piece (1.5cm should remain visible).
- Put the tornado grip onto the M6 cap nut.
- Put the last step onto the Giotto part then slide the V24/39 grip onto it (stretch if necessary).
- Put the assembly inside the Factis barrel.
- Repeat.
- Put the 1cm of emboss cap on the 3cm comssa then connect both Factis barrels onto it.

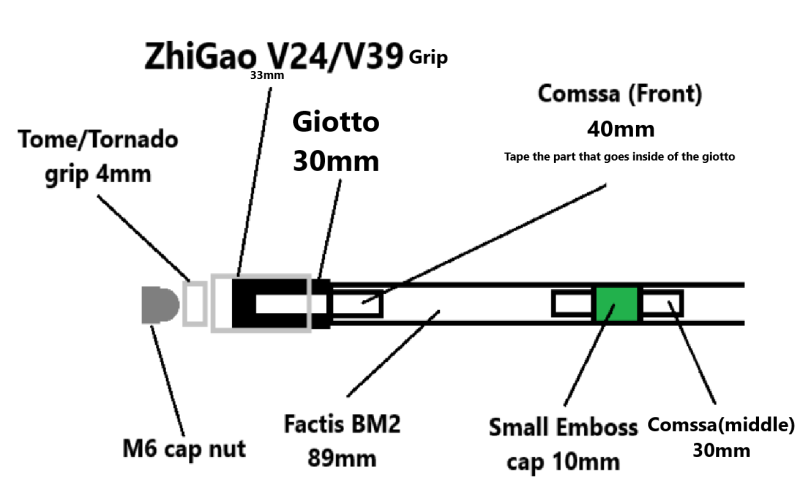

Image tutorial
